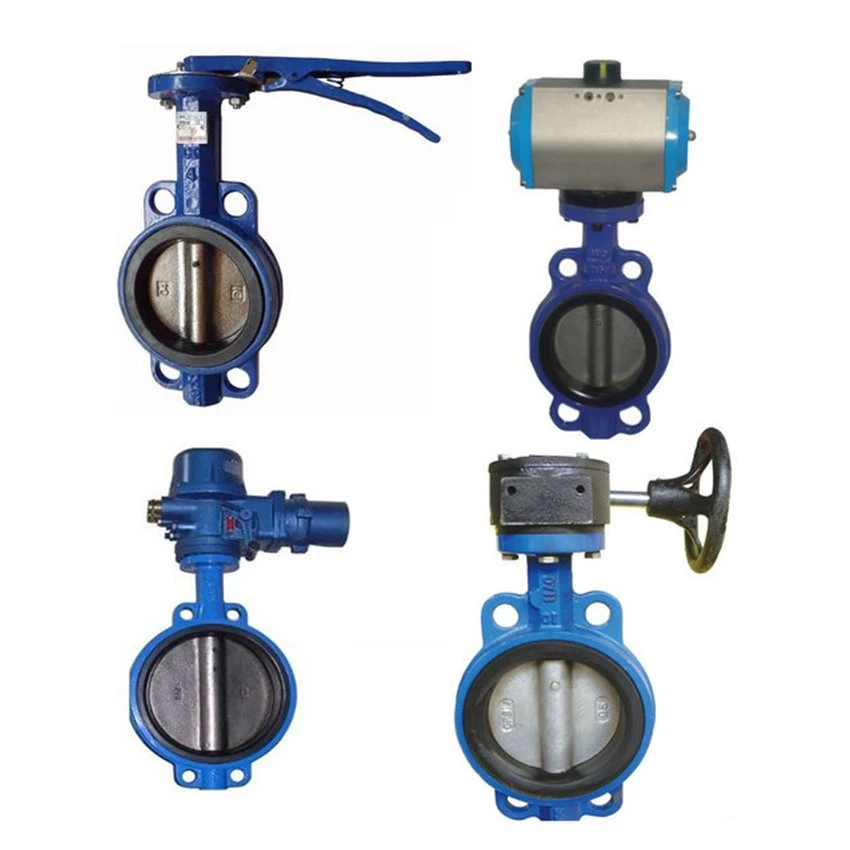

Marin Wafer Kalite Papiyon Valv

● Kalite: wafer
● Creole: JIS
● Size: DN40-DN1200
● Presyon: 5K/10K

Dekri teren

Valv Papiyon Kalite Wafer Marin Apwopriye pou tiyo maren dlo fre, lè oswa gaz, lwil gaz, lwil oliv lub, vapè nan 205 ℃ nan bilding bato oswa reparasyon oswa konstriksyon platfòm maren.

Non: Marin wafer kalite papiyon valv JIS F7480 5K/10K

Estanda konsepsyon: JIS F7480-1996

Gwosè: DN40-DN1200

Max Presyon Travay: 5K / 10K

Kalite operasyon: Levye oswa Kovèti pou vè k'ap manje kadav

Spesifikasyon

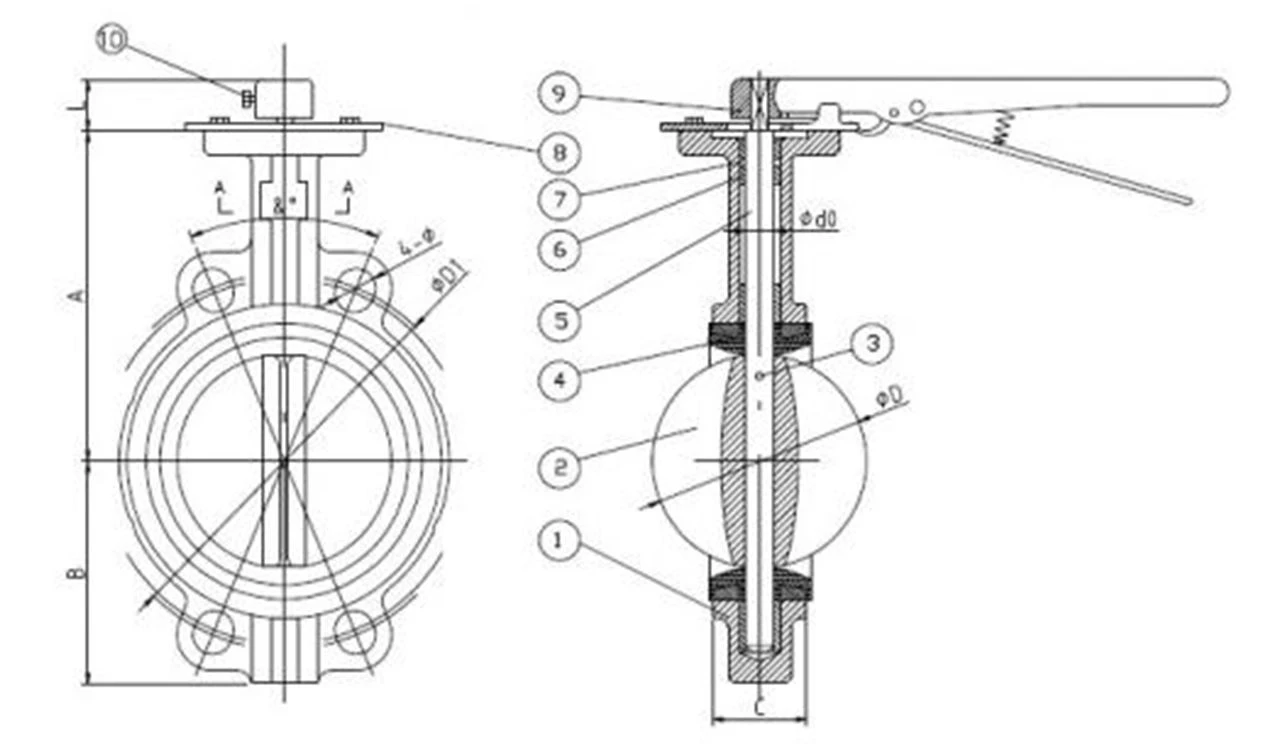

marine wafer butterfly valve F7480

Gwosè	A	B	C	D	d0	K	E	4-d	L	D1	4-⌀	B1
40	120	70	34	41.8	12.6	65	50	7	26	105	19	11
50	140	80	42	52.9	12.6	90	70	10	30	120	19	11
65	150	89	44.7	64.5	12.6	90	70	10	30	140	19	11
80	158	95	45.2	78.8	12.6	90	70	10	30	150	19	11
100	176	114	52	104	15.77	90	70	10	30	175	19	11
125	190	127	54.4	123.3	18.92	90	70	10	30	210	23	14
150	211	139	55.8	155.1	18.92	90	70	10	30	240	23	14
200	235	176	60.6	202.5	22.1	125	102	12	40	290	23	17
250	265	203	65.6	250.5	28.45	125	102	12	40	355	25	22
300	305	242	76.9	301.5	31.6	125	102	12	40	400	25	22
